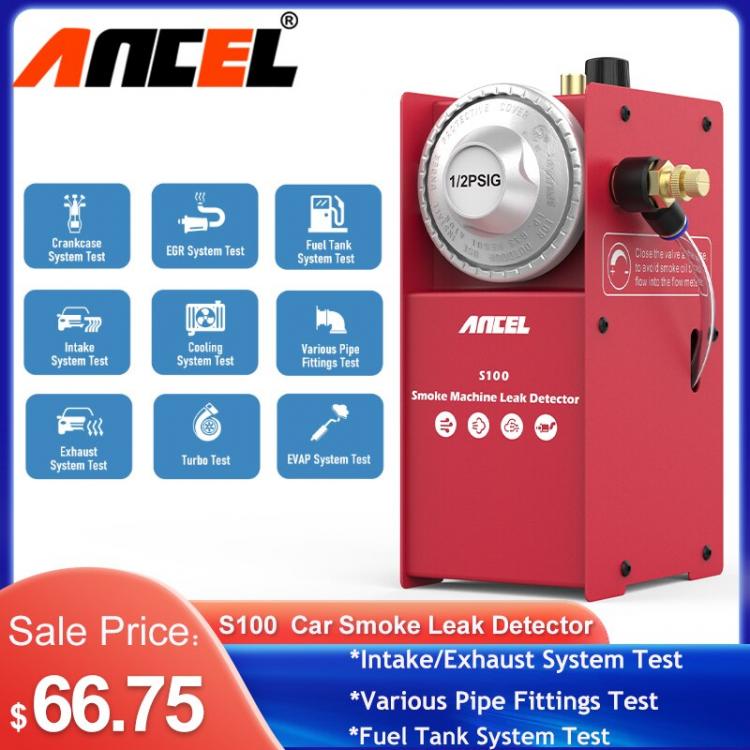

Ancel S100 Car Smoke Leak Detector Automotive EVAP Vacuum Leakage Diagnostic Tool Gas Leakage Oil Pipe Detector Smoke Generator

Ancel S100 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as :

EVAP System
Vacuum Leaks Test;
Intake System Test,
Exhaust Systems Test,
Fuel Tank System Test,
Turbo Test,
Cooling System,
EGR System,
Crankcase System

What Can S100 Do?

Why choose ANCEL S100?

1.Wide range of applications

For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

2.FIND ALL TYPES OF LEAKS:

The S100 smoke leak detector can do the following work - EVAP systems test, vacuum leaks, low pressure turbo leaks, intake manifolds, cooling exhaust systems, door & windows seals, EGR system test, various pipe fittings test, oil leaks, and more!

3.POWERFUL SMOKE:

Equipped with ANCEL's latest smoke generator and 1/2PSI high pressure unit, which ensures continuous output of a large amount of smoke. The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.

4.HIGH- QUALITY PERFORMANCE:

High temperatures are generated during the operation of the smoking machine, which will cause the internal parts to permanently disintegrate at high temperatures and the machine will stop working. Therefore, the S100 smoke machine uses a solid, thick metal structure to protect the internal parts from heat, which greatly extends the service life.

5.SMALL SIZE :

Most smoking machines are relatively large, which is a hindrance when transporting and storing them. This machine weighs only 3 pounds, is small and lightweight, making it not only easy to store, but also easy to transport. It is an indispensable tool for any car owner.

6.SAFE TO USE:

By constantly changing materials and improving heating technology, the smoke produced by S100 smoke machine is environmentally friendly and harmless. When the operating temperature of the machine exceeds 75°C, it will shut down automatically. This effectively ensures the safety of each car owner.

How to do leakage test?

1. Attach the hook to the device.
2. Attach the workshop air adapter to the unit.
3. Plug the power cord into the power outlet.
4. Screw the smoke hose to the unit.
5. Fill smoke oil (mineral oil based) into the unit via the refill opening on the top.
(Note: The oil level must not be higher than the level indicator. )

6.Connect the factory air supply.
7.Connect the vehicle's 12V power supply.
8. Introduce workshop air into the unit. 9.
9. Turn the flow control knob counterclockwise to open the air flow.
10. Turn on the power on the back of the unit, then the unit will start to generate smoke.
11. Introduce the smoke into the system

WHY DO YOU NEED S100 SMOKE MACHINE?

Unmetered air entering an engine will cause all sorts of lean conditions. You cannot see the leaks without the help of smoke. A vacuum line can just become porous over time but look ok. O-rings can become hardened and no longer seal. Plastic parts can be separated or cracked.

Exhaust leaks can be bad for your health and can cause backfiring in carbureted cars. You can use the S100 smoke machine to help find exhaust leaks, without running the engine and gassing yourself.

You can smoke test EVAP systems, vacuum leaks, low-pressure turbo leaks, intake manifolds, cooling / EGR / exhaust systems, worn rubber, gaskets, seals, connectors, and more.

In modern cars, many check engine codes are set off by an air/vacuum leak. Quickly dialing in the problem will save you time and money in a shop and help a home mechanic find the problem instead of just changing parts.

Smoke Leak Detector ANCEL S100

Package Weight: 1.4kg

Main unit dimensions: 9.3cm x 16cm x 7cm

Package Dimensions: 15.8cm x 23.5cm x 11.5cm

Output pressure:0.5PSI

Output Volume:<8LPM

Power Supply:DC12V

Current:5AMP

Product Package:

1pc * ANCEL S100 Car Smoke Leak Detector Main Unit
1pc * Power Cord
1pc * Hook up
2pc * EVAP Kit
1pc * Smoke Delivery Hose
1pc *Air Adpt
